Measure precisely. Present beautifully.
Description

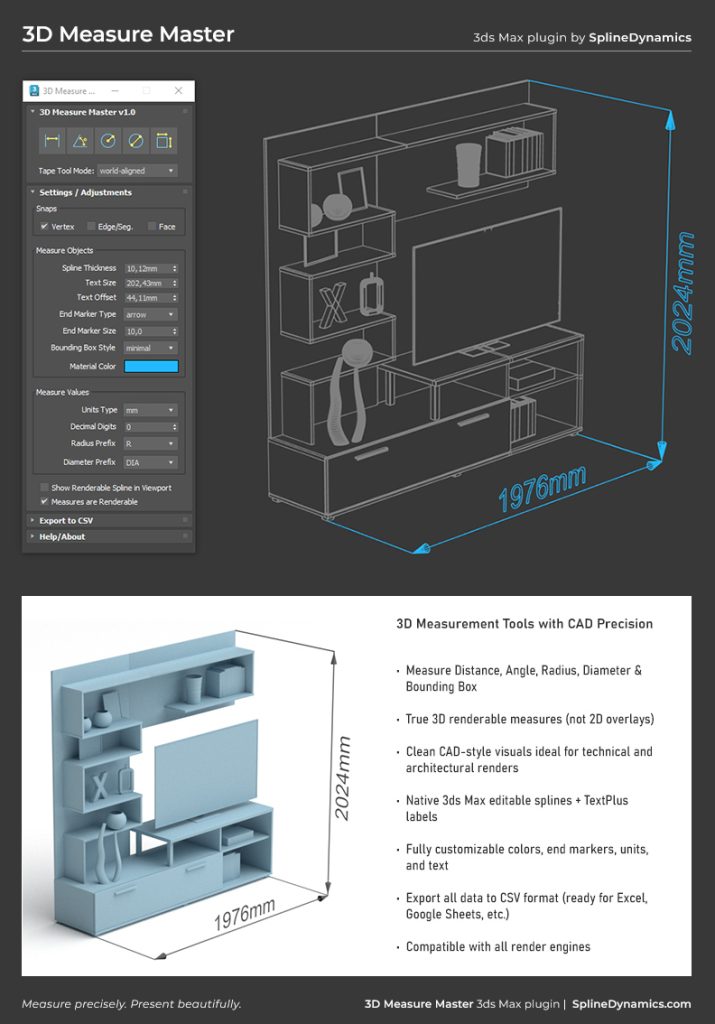

3D Measure Master brings accurate, CAD-style 3D measurements directly into your 3ds Max scenes.
It’s the ultimate solution for visualizing, checking, and documenting dimensions in a clean, technical way — right in your viewport or render.
Measure distances, angles, radii, diameters, and bounding boxes with true spatial precision.
All dimensions are represented by 3D splines and TextPlus objects that stay in your scene — editable, renderable, and fully integrated with your workflow.
Unlike temporary screen overlays or standard helper tools, 3D Measure Master works in real 3D space, ensuring perfect geometric accuracy and visual consistency. Designed for architectural visualization, technical modeling, and industrial or product design, it gives you CAD-level control without leaving 3ds Max.
With its elegant blueprint-style visuals, intuitive interface, and fully renderable output, it’s the most efficient way to create and manage professional measurements in 3ds Max. Whether you’re validating proportions, reviewing models, or producing technical renders, 3D Measure Master turns your 3ds Max scenes into clear, precise, and presentation-ready documentation.
Features
- Five specialized tools: Distance, Angle, Radius, Diameter, and Bounding Box
- True 3D measurements based on real scene geometry (not 2D overlays)
- Snapping to vertices, edges, and faces for precise alignment
- Suitable for both 3D models and 2D shapes
- Clean CAD-style visuals ideal for technical and architectural renders
- Persistent, renderable dimensions that remain in the scene as editable objects
- Native 3ds Max elements: 3D Splines and TextPlus labels — no custom dependencies
- Works perfectly on both camera/perspective or orthogonal views
- Centralized UI listing all measurements for easy editing and management
- Customizable appearance: color, spline thickness, text size, offset, kerning, and leading
- End markers on various styles: arrow, sphere, cube, or none
- Independent units system (m, cm, mm, ft) and configurable decimal precision
- Toggle render visibility for all measures
- Add custom text or description to each measurement
- Export all data to CSV for documentation or review. Ready for Excel, Google Sheets, etc.
- Lightweight, non-destructive, and compatible with any renderer
- No plugin-dependency
- Easy drag & drop installation
More Info
Check out the Tutorials and Script Manual for examples and further information.
3dsMax version required: 2016 or higher.
Last update: October 19, 2025
Purchase
Purchase 3D Measure Master License
3D Measure Master v1.0
